Supported Camera models

GFX100/GFX100S/GFX50S/GFX50S2/X-S20/X-S10/X-T5/X-H2/X-H2S

Take Fuji FilmX-T5 as an example

Initial Pairing

Network settings

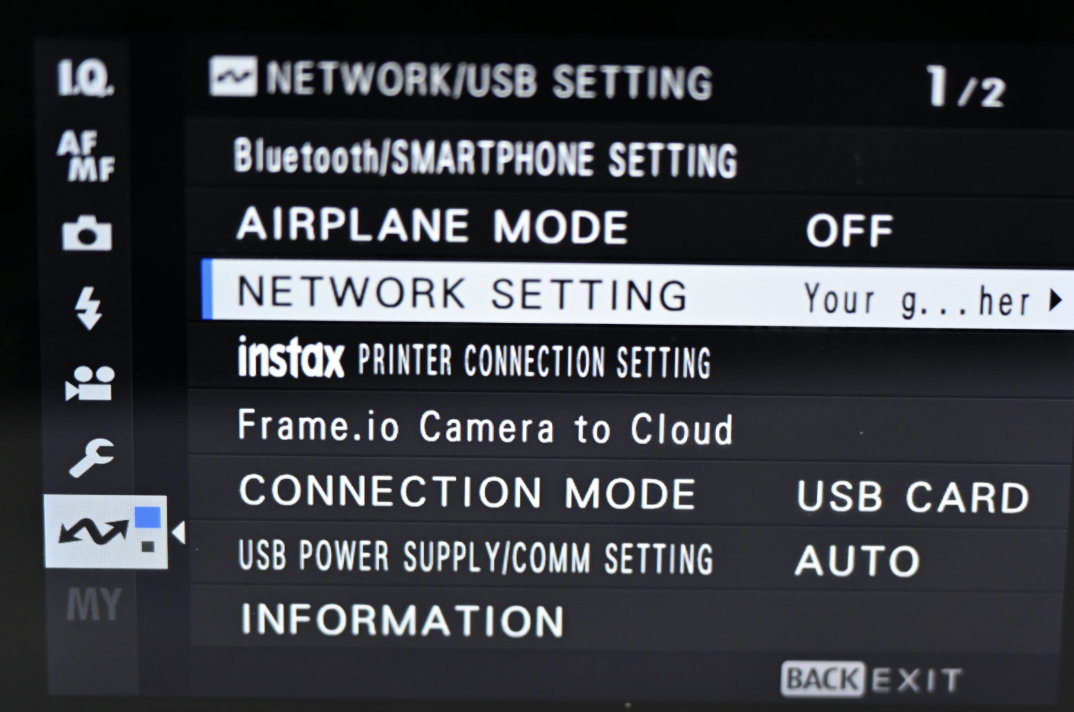

• Choose NETWORK SETTING in NETWORK/USB SETTING, and select a network configuration.
  Note: If the NETWORK SETTING is grayed-out and cannot be clicked, you need to set the CONNECTION MODE to USB CARD first.

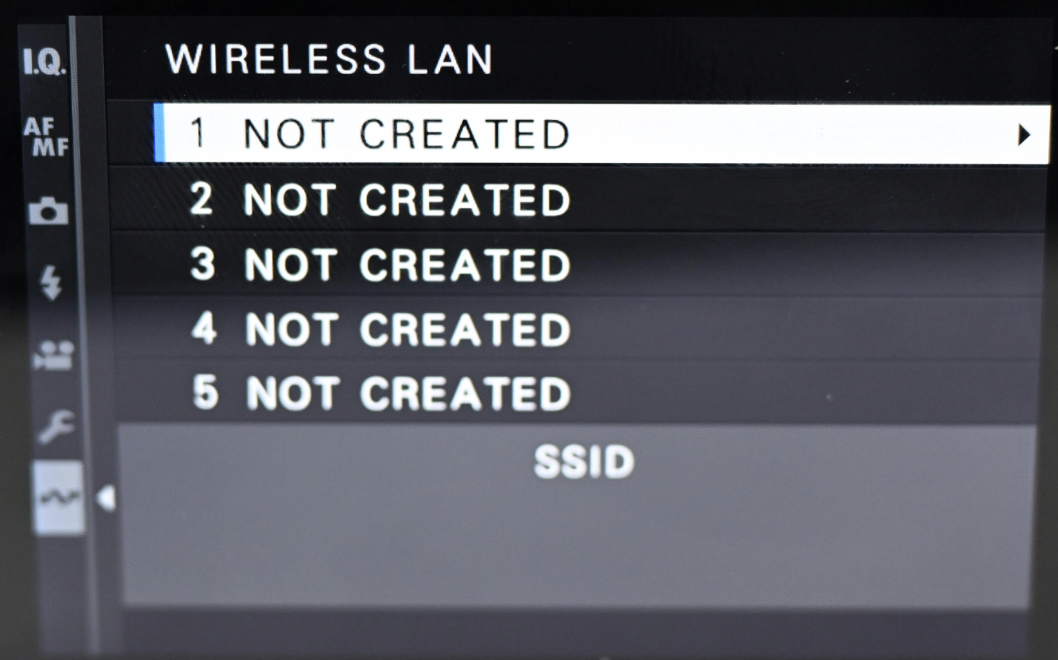

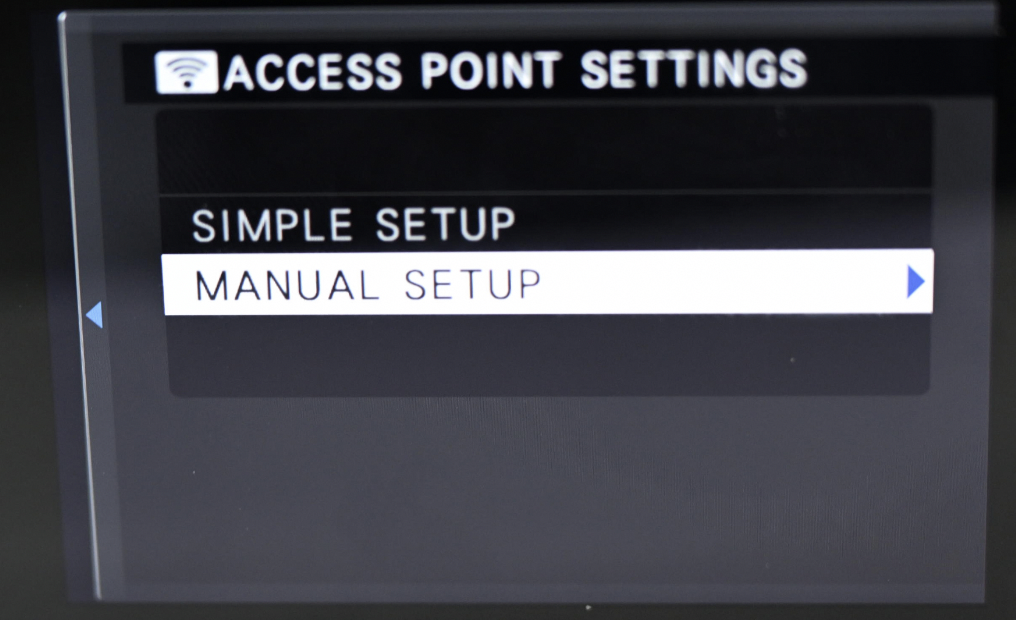

• Select 1, for example, then switch ACCESS POINT SETTING to MANUAL SETUP, and set as SELECT FROM NETWORK LIST.




• Then you are able to select the target wifi name, enter the password and when REGISTRATION COMPLETED is shown, click OK.

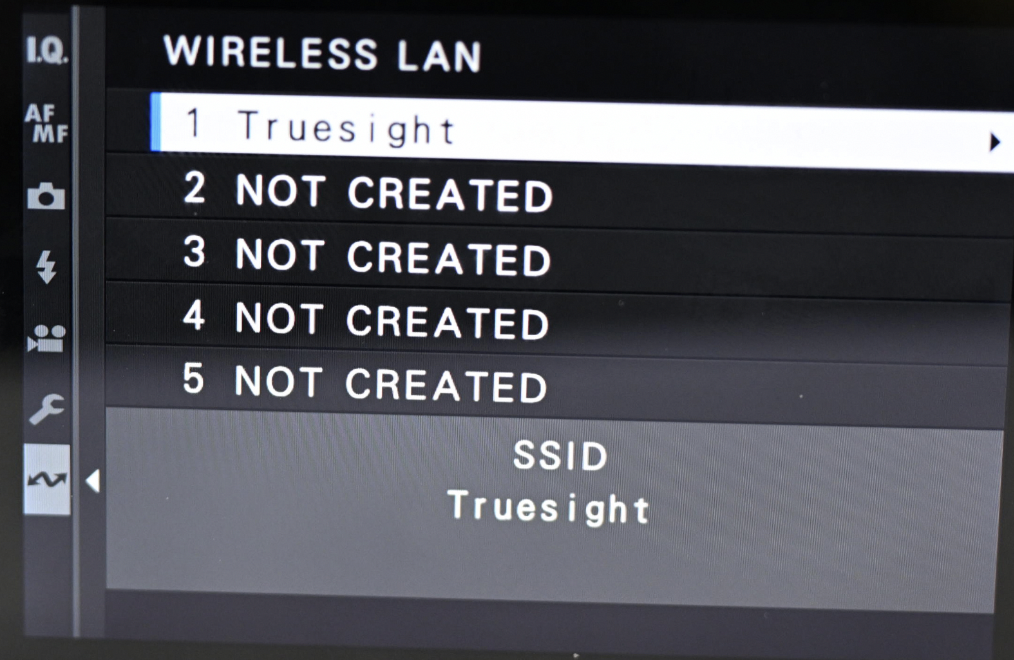

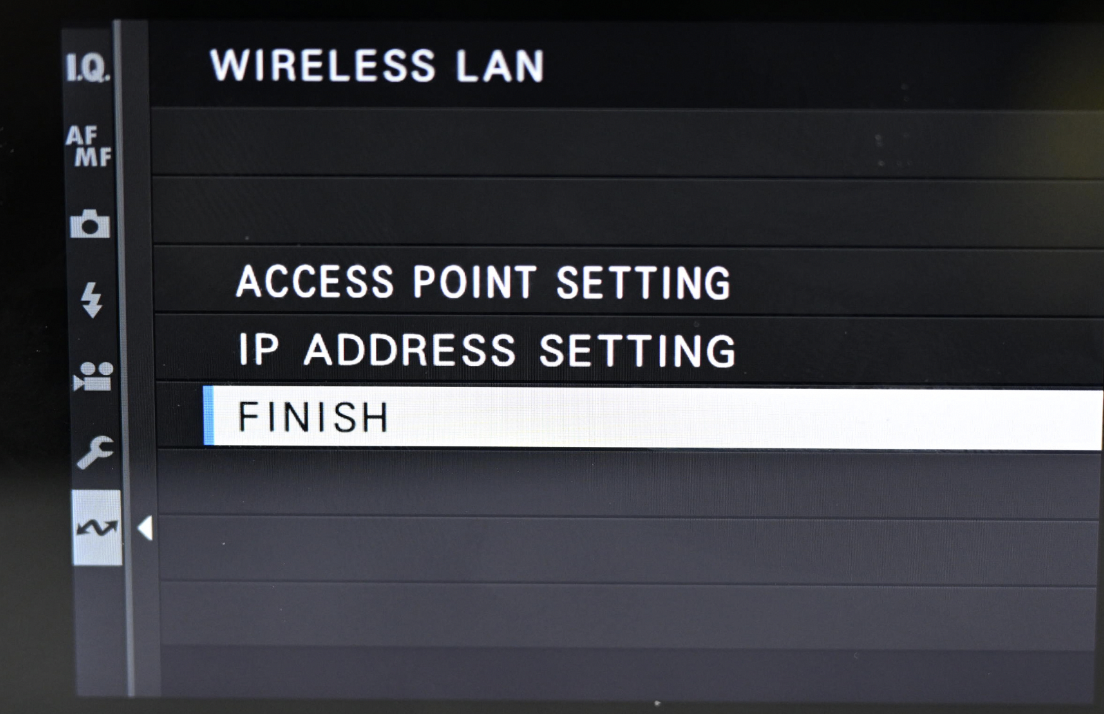

• Then, return to the WIRELESS LAN setting interface. Please select FINISH and click OK to save all the settings you have previously made. Now you can see the network configuration, which already displays the name of the wifi you just connected to.


• Highlight the net work configuration and click OK. Click SELECT, and it will automatically return to the NETWORK/USB SETTINGS page. The registered wifi name will be displayed in the NETWORK SETTING section.

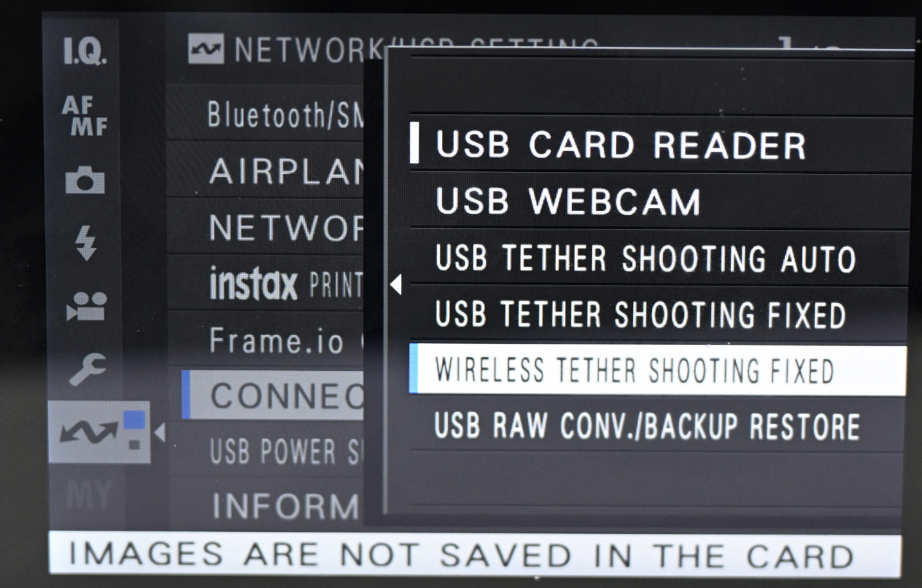

• Switch CONNECTION MODE to WIRELESS TETHER SHOOTING FIXED

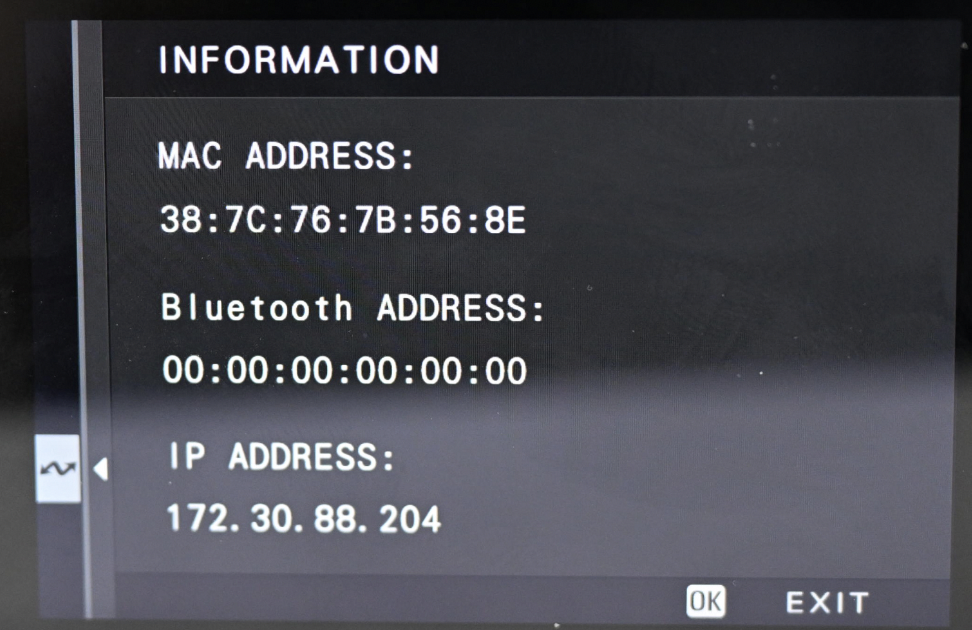

• Click to view INFORMATION and the numeric IP address appears as IP ADDRESS.
  Note: If all appears as *****, it means the connection to wifi was unsuccessful.


• You can now use Evoto iPad to connect to a camera for tethering. Once the connection is successful, the indicator light on the top right will flash green.
