iPad Tethered Shooting
Evoto for iPad supports both wired and wireless tethered shooting, allowing you to capture, preview, and edit photos in real time. Whether connected via a direct cable or over Wi-Fi, you can apply preset effects instantly and monitor full camera settings as you shoot.
Key Features
- Supports wired (USB) and wireless (Wi-Fi) tethered shooting
- Plug-and-play connectivity with automatic camera detection
- Displays full camera metadata: aperture, shutter speed, ISO, exposure compensation
- Real-time effect preview with one-click preset application
- Customizable file naming and format filtering
- Export both original and edited images
How to Start Tethered Shooting
- Open Evoto on your iPad.

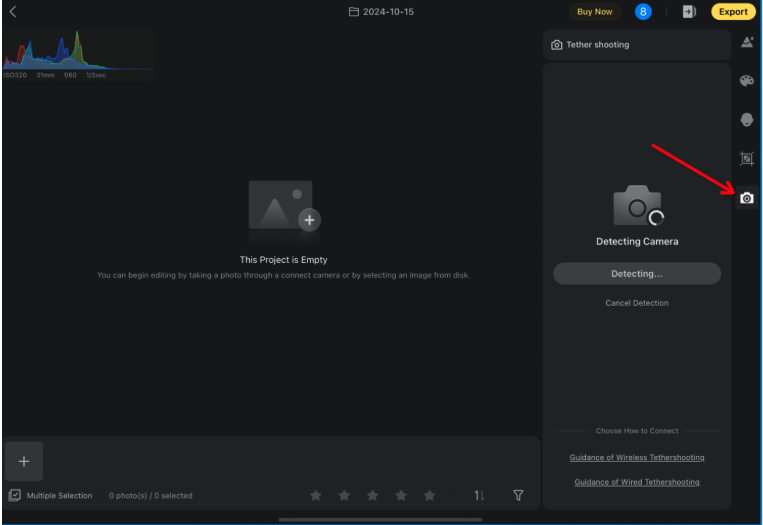

- Tap the camera icon in the right-hand toolbar.
- Evoto will enter the Tethered Shooting interface and begin automatic camera detection.

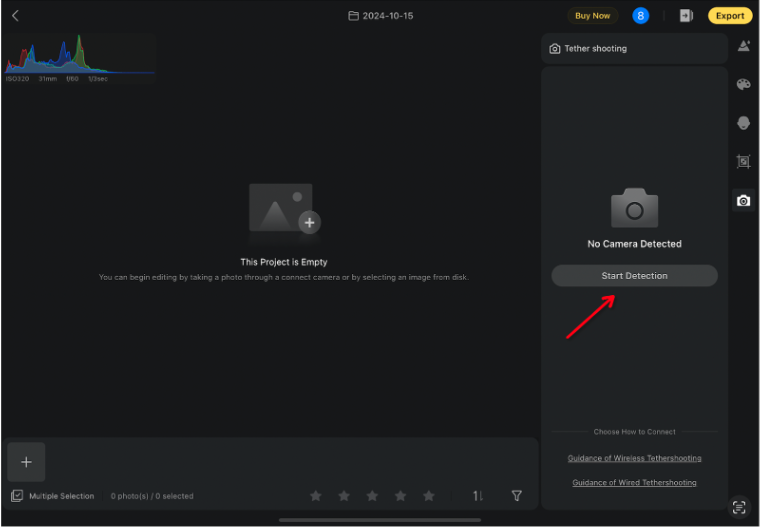

- If you click Cancel Detection, tap Start Detection to retry.

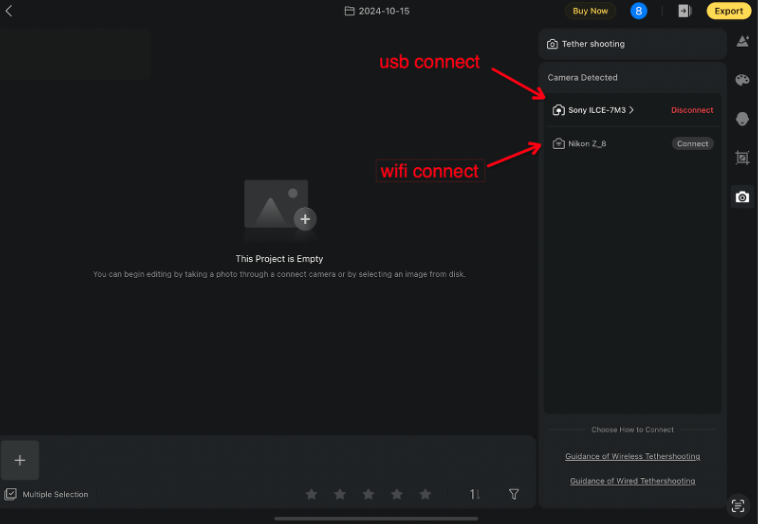

- Wired and wireless cameras will appear in a unified list, with icons showing the connection type.
- If one wireless camera is detected, it will show a “Connected” label and a disconnect option.
- If multiple cameras are detected, they will be displayed with appropriate connection labels.

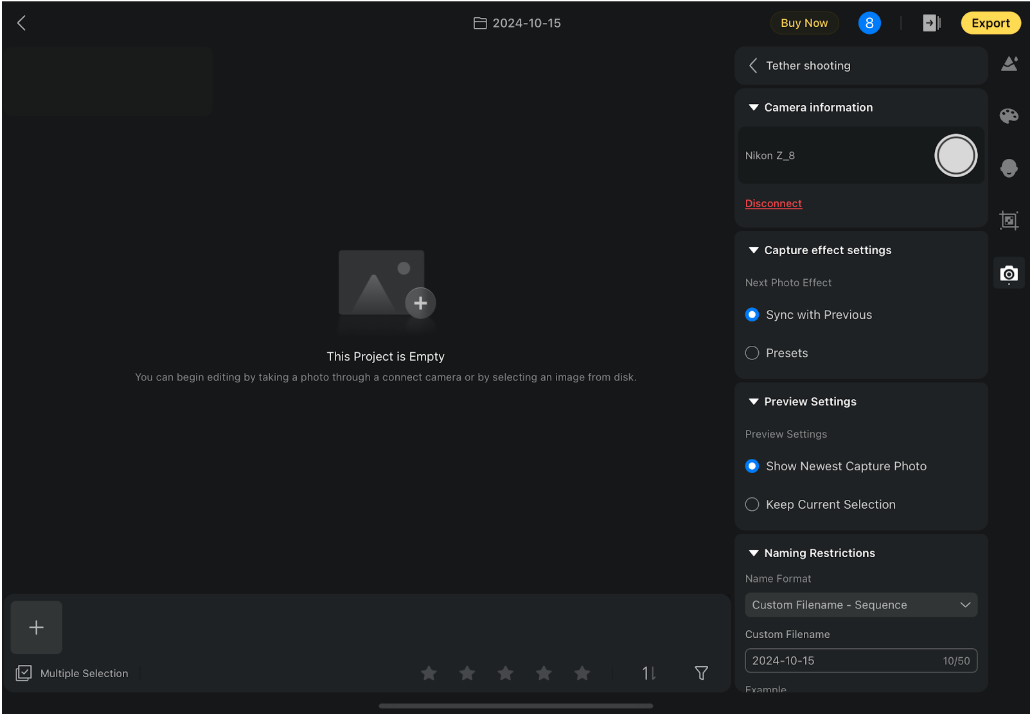

- Once connected, you will see:
- Live shooting and instant preview
- Remaining storage capacity and available shots on the device
Capture and Preview Settings
Capture Effect Options
- Sync with Previous – Applies the same effect settings used on the last photo
- Presets – Apply a selected preset to new images automatically

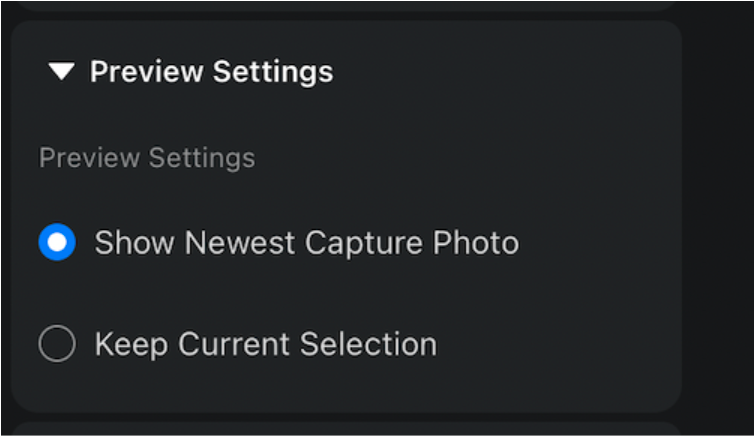

Preview Display Options
- Show Newest Capture Photo – Automatically switches to the latest capture (default)
- Keep Current Selection – Remains on the currently selected image, regardless of new captures

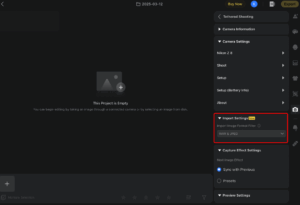

Import Settings

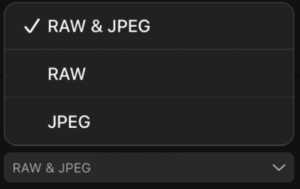

Format Filtering
Tethered shooting (wired or wireless) supports filtering by image format:
- JPEG & RAW
- JPEG only
- RAW only
Note: If the camera is limited to one format, other filter options will be disabled.

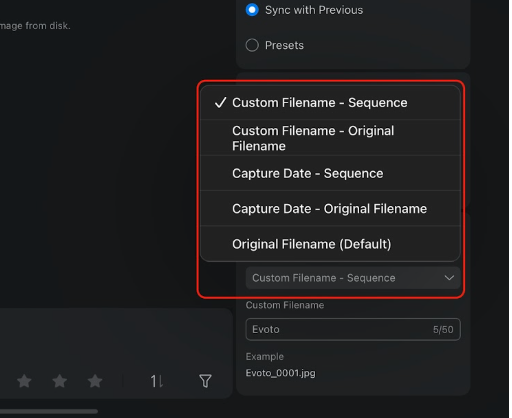

File Naming Options
Choose from five naming styles:
|
Format |
Description |
|
Custom Filename – Sequence |
e.g., Evoto_001, Evoto_002 |
|
Custom Filename – Original Filename |
Custom prefix + original file name |
|
Capture Date – Sequence |
e.g., 20240506_001, 20240506_002 |
|
Capture Date – Original Filename |
Includes date + original name |
|
Original Filename (default) |
Uses name generated by the camera |

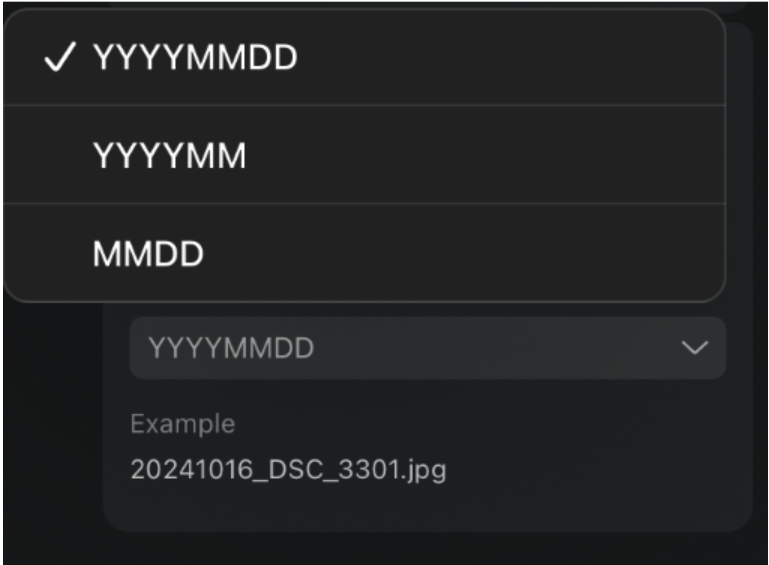

- Available Date Formats:
- Restricted Characters: Do not use ; : ^ * < > ? |. Invalid characters will be removed, and a red warning will appear until all are cleared.
Supported Camera Models
For optimal compatibility, some camera brands may require setup adjustments. Refer to brand-specific guides:
- Canon Cameras
- Sony Cameras
- Nikon Cameras
- Fujifilm Cameras
- Panasonic Cameras
- Leica Cameras
- Olympus Cameras
Note: Wireless tethering requires a memory card to be inserted in the camera.
Exporting Captured Images
You can export:
- The edited version (consumes credits)
- The original image (free, does not use credits)
By default, Evoto uses the iPadOS system file picker. If cloud services like iCloud Drive or Google Drive are connected, you can export directly to them via the sidebar.
Troubleshooting: Connection Issues
Possible Causes
- iPadOS version is outdated
- Unsupported camera model
- Another app is using the camera (e.g., Photos, Preview, Image Capture)
- Missing or unreadable SD card (especially for wireless)
- Incompatible cable or adapter (non-OTG for wired)
- Unstable or weak Wi-Fi signal (for wireless)
- System conflict with drivers or background apps
Recommended Solutions
- Update iPadOS to the latest version
- Confirm that your camera model is supported
- Close other apps that might occupy camera access
- Use OTG-certified adapters and functional cables
- Insert a memory card into the camera (required for wireless)
- Switch to a more stable Wi-Fi network if needed
- Restart the camera, Evoto app, or iPad
- Reinstall Evoto if problems persist
For further help:
- Email: support@evoto.ai
- In-app support: Available via the Help panel
